UX/UI design
Scope & brief of the project
What we did ?
01
Analysis

How can 3D help simplify information?
How can 3D ensure safety and enhance the user experience? How can LEIA Display technology be promoted without showing its limitations?

02
Use cases

For this project, we decided to focus on specific use cases to emphasize on specific driving situations: foresee vulnerable users, anticipate speed limit and pedestrian intention,
combine several info like navigation and eyesight, turn by turn guidance, Big and small instrumentation transition...

04
3D development

The team focused on low poly modeling, 3D transitions, navigation development and new shaders in accordance with the concept and constraints related to HPC and Leia. We also developed the instrumentation and camera view changes according to the context.

03
Product design

In order to demonstrate new design possibilities and to improve the user's perception, this phase focused on the research of tangible 3D shapes and their animations. We took our inspiration from luxury watch.

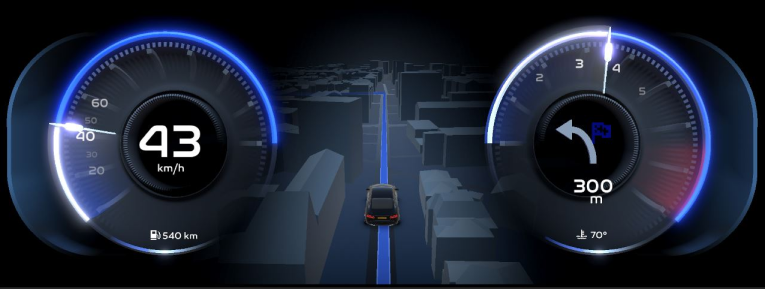

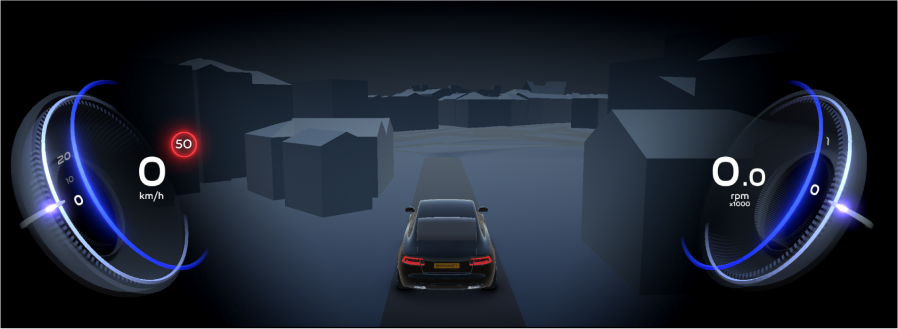

3D Cluster
for the CES 2022
Powered by 3D Lightfield Technology
What is the 3D display ?
a smart thinking
The Lightfield 3D display, powered by its proprietary Diffractive Lightfield Backlighting (DLB™) technology, delivers an uncompromising 2D display that provides the most natural and immersive 3D experience to date.
The idea of this project is to produce an immersive experience through 3D technology without glasses and thus bring depth, light, texture and a sense of volume to automotive interfaces. This project propels images off the screen and closer to us than we ever imagined.
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Challenges
Goals
The challenge of this project is to promote our expertise in automotive human-machine interface solutions and 3D Leia Display and to implement 3D navigation and cluster on 3D display ​with new wow-factor and a better UX.
3D can help drivers to anticipate a situation thanks to a better environment understanding. 3D provides space and depth. Therefore, the distances are easier to understand.

3D allows to prioritize elements with depth on 3 dimensional layouts. The additionnal depth dimension helps to layout content and hierarchize information and warning. So, the driver can access important information with less cognitive load. Therefore, the driver can focus more on the road and less on distractive elements.
The challenge is also to create a more intuitive interaction between the driver and the vehicle and thus improve driving safety. At the same time, we need to promote HPC performance through the 3D user experience and convince OEMs to adopt this technology.
3D boosts the alert perception with eye catching effect of objects suddenly popping out the display.

3D provides visual impact with wow factor effect.
Safety and User Experience
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Understand the technology
analysis
The resolution is low. The full resolution of the curved cluster display is 2400x900 (2k, 208ppi). The 8 individual views are only at 849x318 (<1k, 74ppi). Small fonts and tiny graphics are not recommended.
The depth of field is limited. If a 3D object is too far in front or too far behind Leia Frustum, the 3d object seems blurred. Only one area is clearly visible for 3D objects.
Give perceived richness without adding content richness
Multi view
Composite
Rich and minimalist
Eye catching effect when 3D content is at display/ More impressive.
Dynamics
Depth
Emphasy
Engagement
3D infographics
Transitions
the benefits
the benefits
Components for 3D demo
3D scene
the content
the benefits
Promote HPC & better UX in automotive context with:
Navigation
Microenvironment
Instrumentation
Enhance environment understanding. Feeling in contact with environment
Localized
Viewing angle
Focus
Hierarchy
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Readability
Easy implementation
3D feeling
Inspired by Jan Van Yeck, create a better 3d feeling and fix some 3d Leia display issues, promote technology with tangible objects.

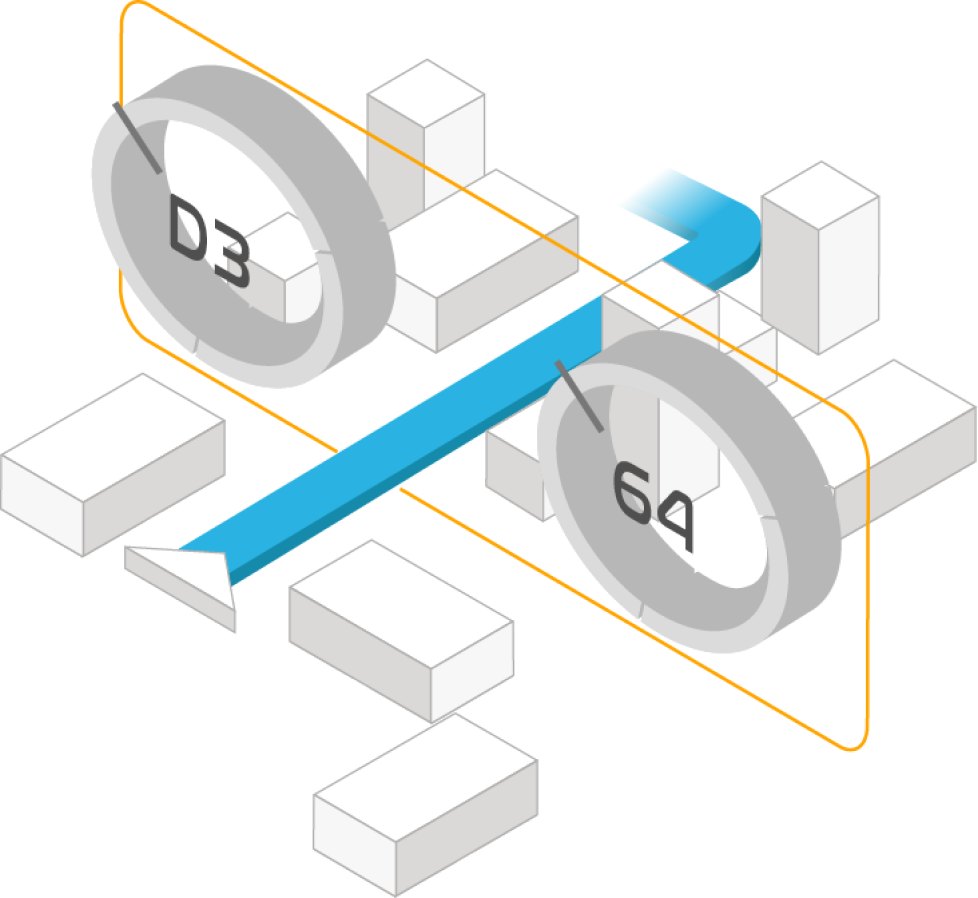

Multi-Layer for 2.5 D
Maximizing depth & performance
Limited depth of field
Leia Display Constraints
Too far in front of Leia Frustum >
Blurred and visually uncomfortable
In front of Convergence Plane > Appears to pop out of the screen
Convergence Plane
> Appears in focus and directly in the screen
Behind Convergence Plane
> Appears behind the screen
Too far behind Leia Frustum > Blurred and visually uncomfortable
Test 01
Solution
3D Elements
Test 02
Realistic, 3D feeling
3D engine effect
Leai Display & 3D engine
Direction
customer feedback
After a discussion with the clients, we decided to focus on navigation, microenvironment and instrumentation to demonstrate the performance of 3D & HPC and to hightlight Adas expertises.
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Demo Concept
Use cases
The goal is to produce a rich experience by adding an emotional connection to the digital world, to make the interface more human, tangible and alive.
City Drive

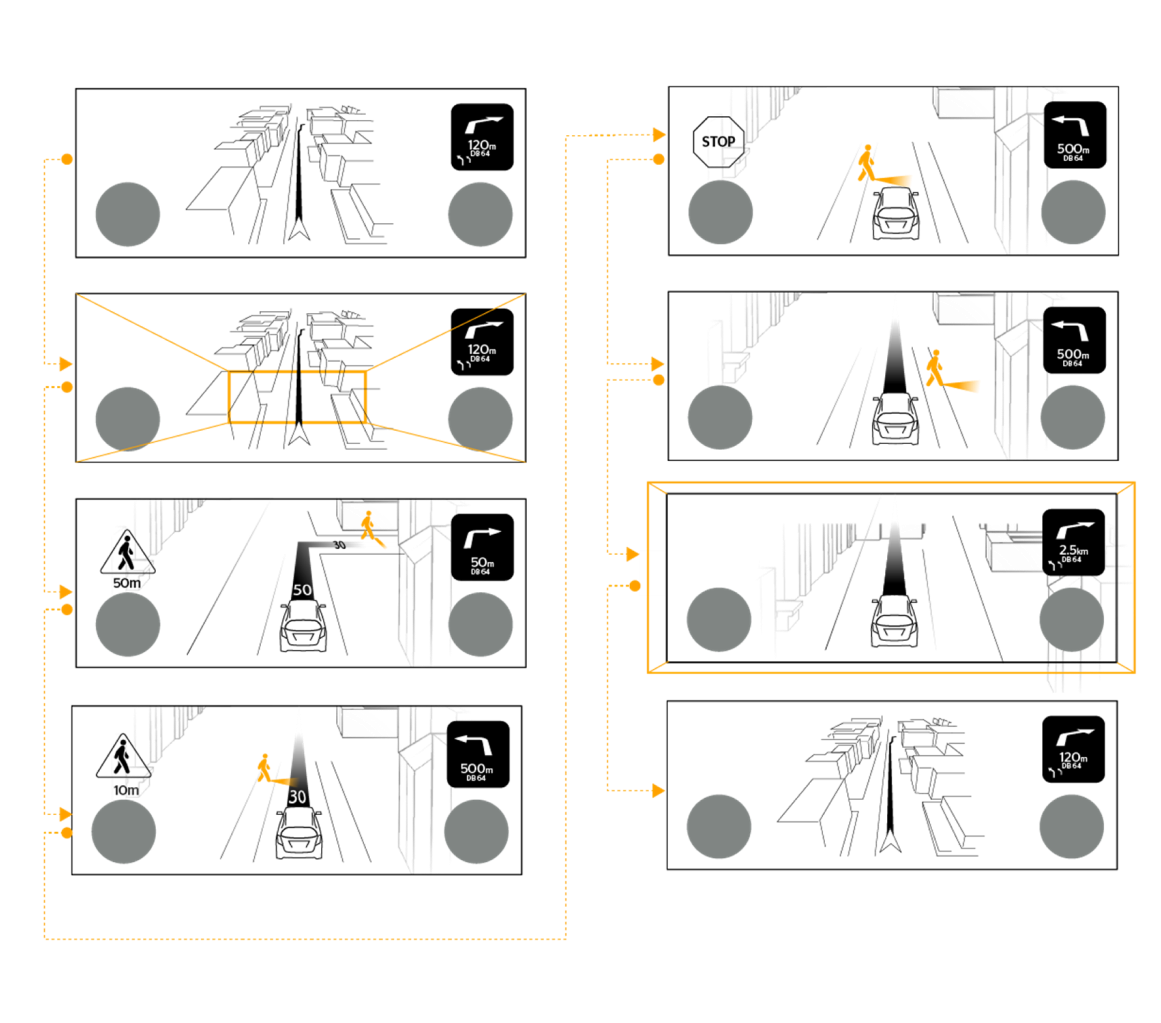

Demo script

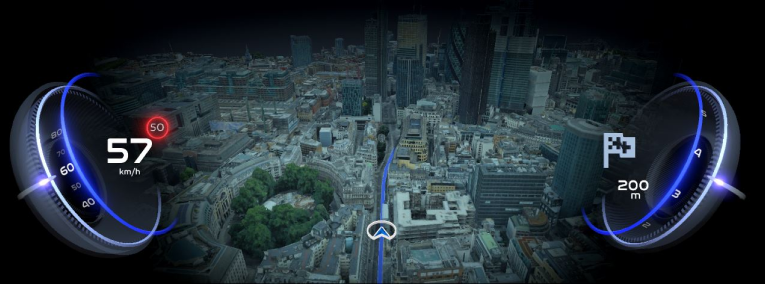

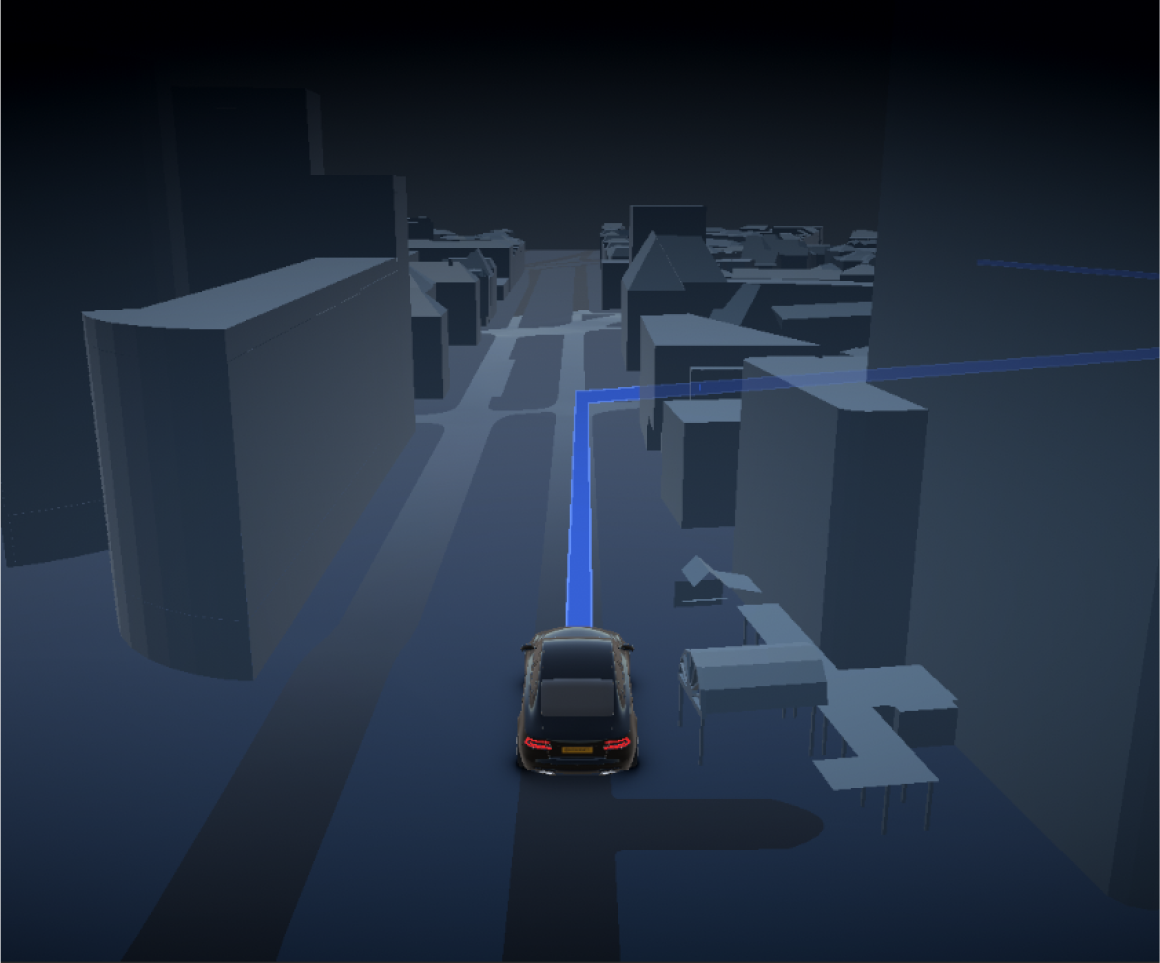

Microenvironment & Navigation
Wow effect & Instrumentation

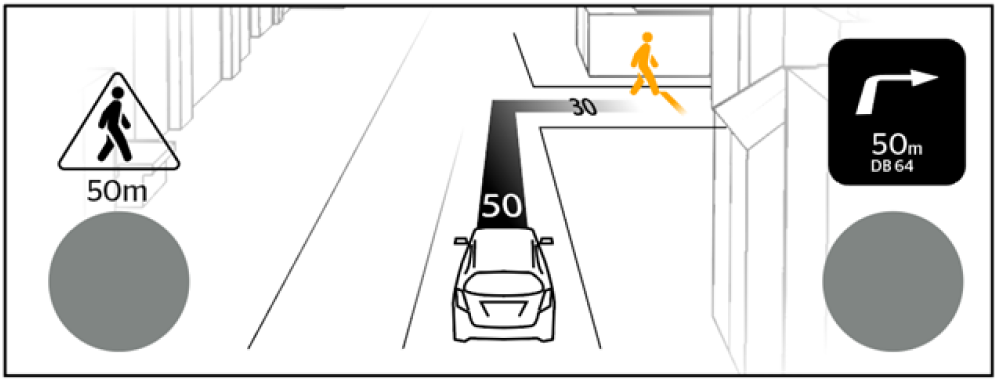

Emphasize specific driving situations

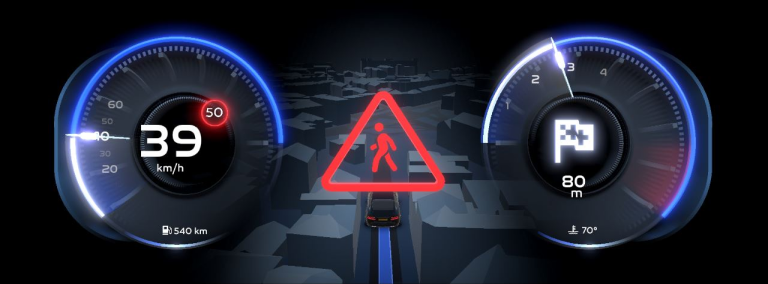

Foresee vulnerable users
Combine several info (navigation and eyesight)

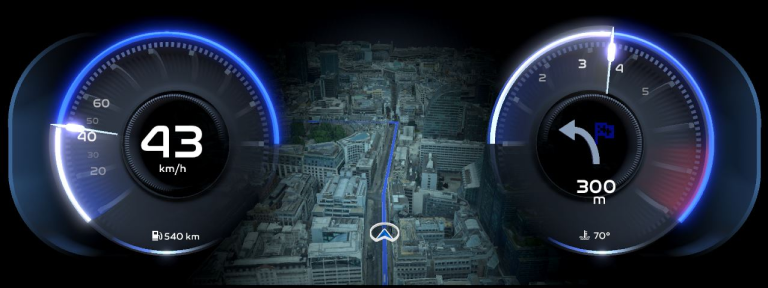

Turn by turn guidance

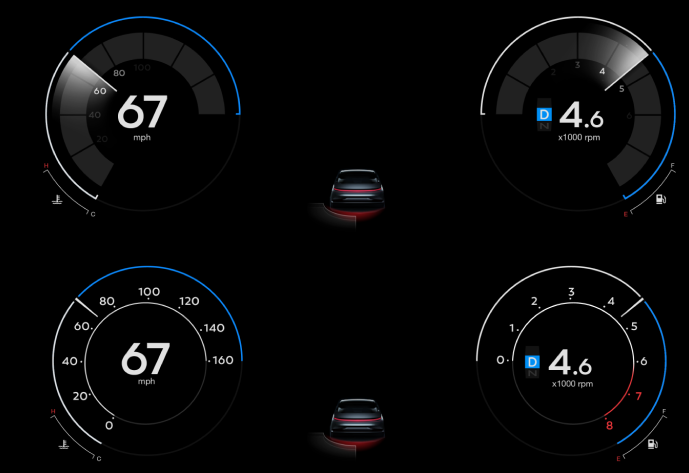

Big and small instrumentation transition
Visual impact, Wow effect
Detailed 3D view of vehicle, locate possible issues
Natural sensation of depth and feel cluster
The storyline is:
Emphasize & anticipate road events
Materialize Intelligent intersections & V2X
Commit user & Boost user understanding.
3D effect by revealing
the UI
Make the instrumentation tangible/intuitive by real effects of light, texture, transparence etc.…
Point of view high/low 3D transitions to focus on events
Catch eye with 3D effect on pop up to warn
Play with 3D depth effect (bring to front/back) to notify an hierarchize (escalation system alert)
Play with 3D depth.
Zoom effect in over speed situation
Use animations to convey information to the driver using peripheral vision

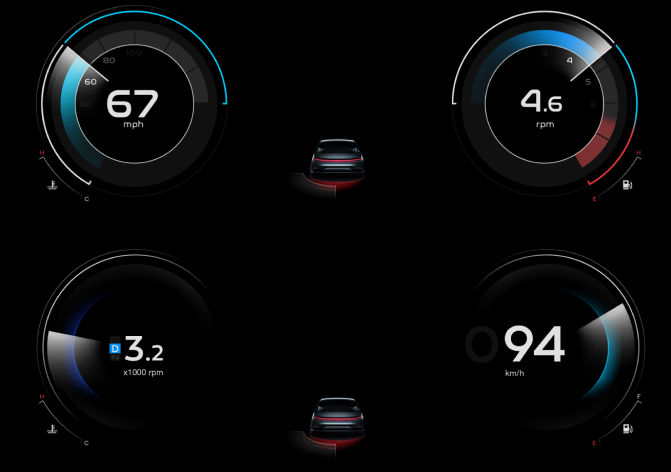

Instrumentation
Enhance Instructions
Improve warning
Act out the instrumentation
Catch user attention
Increase user emotion & feeling
Storyline & Design

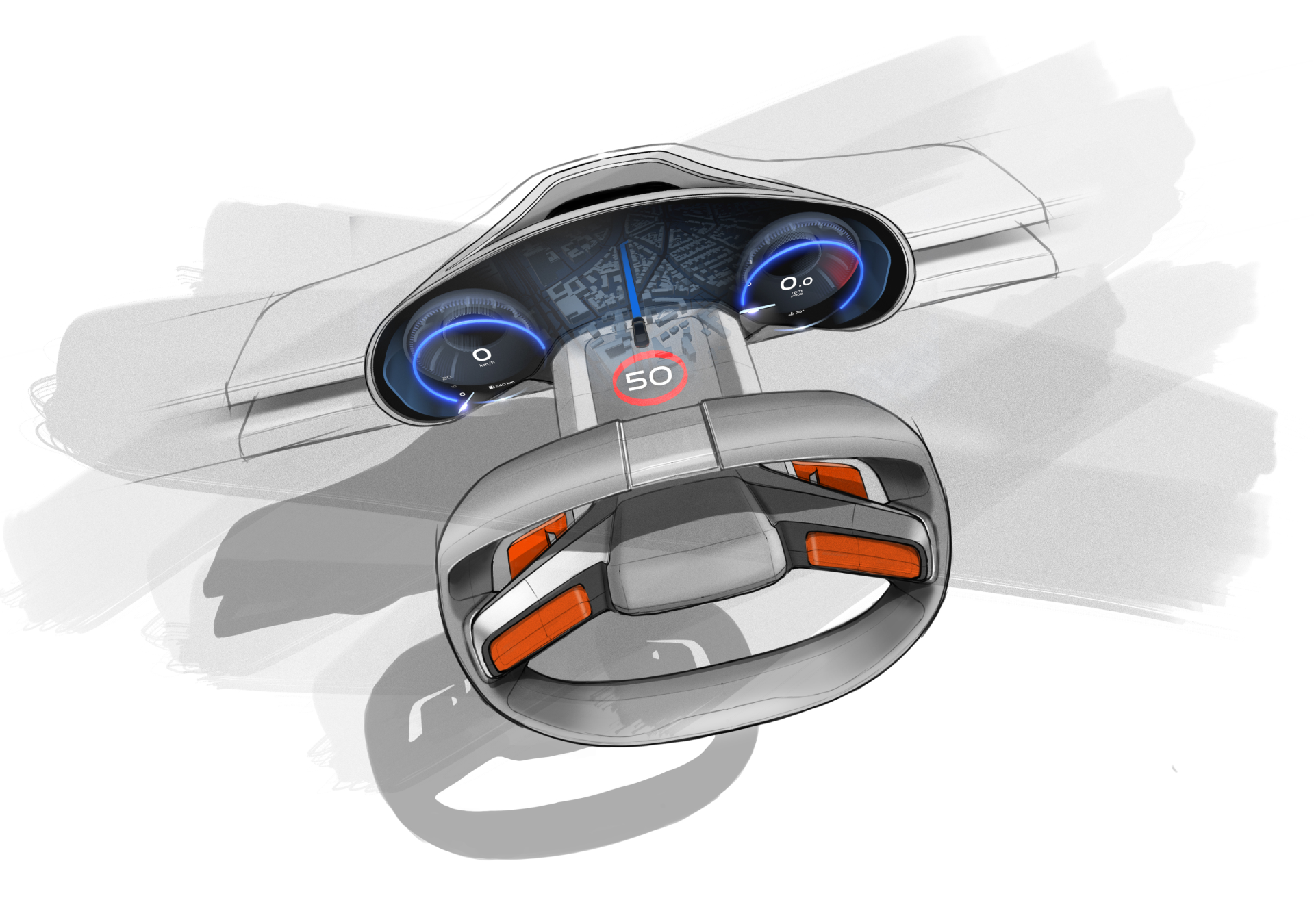

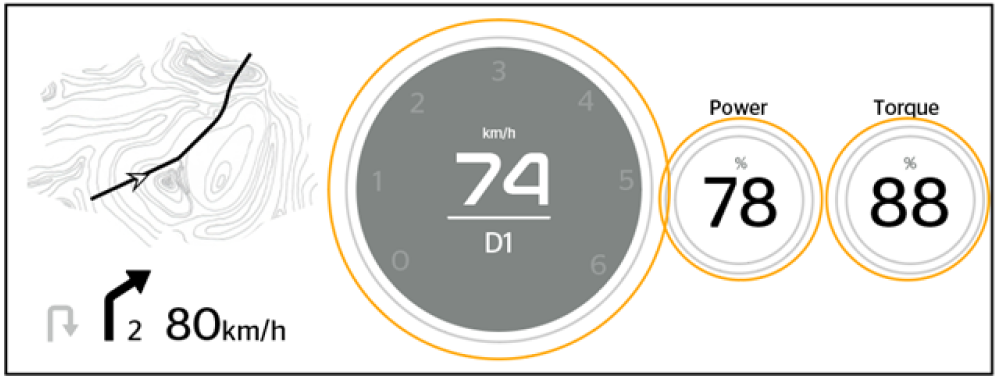

Sketch research
The goal of this phase is to find the best way to demonstrate the 3D technology and its benefits in terms of safety and visual impact.
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Produce the immersive experience of 3D without the glasses – a layer of magic that brings depth, light, texture and a heart-feel to every image and interaction online. The shimmer on water, the glistening of a tear, the depth of a stare. It propels images off the screen and closer to us than we’ve ever imagined possible. And with the 3D display, the entire experience is now within your reach.
Essential
Franckfurt
London

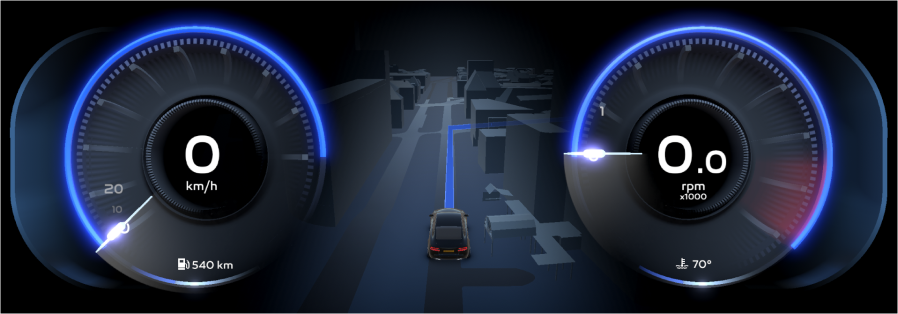

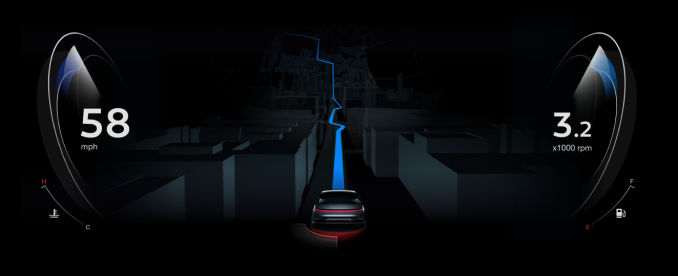

3D Cluster & HPC
Realistic
